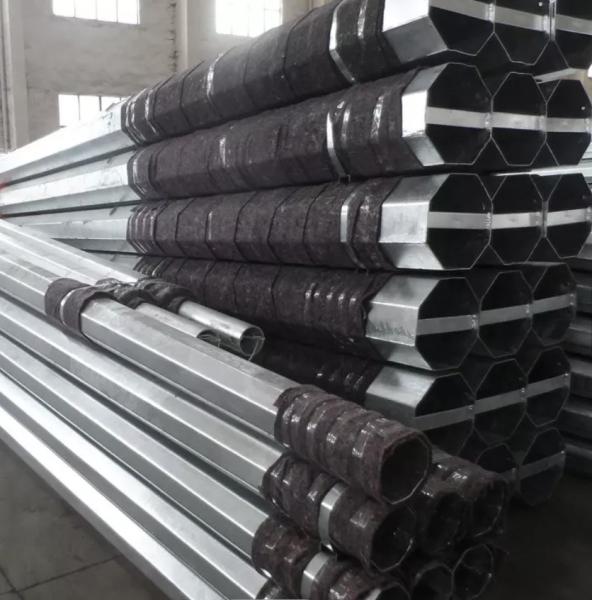

10kv-500kv galvanized steel power distribution pole electrical transmission line steel tower
Shape of pole
Round conical; Octagonal tapered; Straight square; Tubular stepped;
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Powder coating
Pure polyester powder painting, color is optional according to
RAL Color stardand.
Jointing
Jointing of pole with insert mode,innerflange mode,face to face joint mode.
Base plate mounted
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Ground mounted
The length buried underground as per customers requirement.
Quality Control
We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.
Specifications:
| Products | - 10kv-500kv galvanized steel power distribution pole electrical transmission line steel tower
|
| Type | - Suspension Pole , Tensile Pole , Strain Pole , Angle Pole , Dead-end Pole , etc
|
| Voltage Grade | |
| Height | |
| Shape | - Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered
|
| Material | - Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material
|
| Wall thickness | |
| Once Forming | - 16m Once forming without joint
|
| Welding | - Welding complies with AWS D1.1 standard.
- CO2 welding or submerged arc auto methods
- No fissure, scar, overlap, layer or other defects
- Internal and external welding makes the pole more beautiful in shape
- If customers need any other requirements of welding, we also can make adjustment ad your request
|
| Joint | - Joint with insert mode, flange mode.
|
| Base plate | - Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
|
| Galvanization | - Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
|
| Painting | - According to clients' request
|
| Life Period | - More than 25 years, it is according to installing environment
|
| Advantages | - Short Construction Cycle
- Less Land Occupation
- Low Overall Cost
- Easy Installation and Maintenance
- Weather Resistance
- Anti-corrosion
- ODM & OEM are available
- Capable to Handle Volume Orders
- Provide Professional Design by Our Experienced R&D Engineers
|
Product Details
Engineering and Design Management
“Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.
Quality Control Management
JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.
Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.
Our Services
- Reply within 24 Working Hours
- Factory Direct Sale
- More than 15 Years Design & Manufacture Experience
- Capable to Handle Volume Orders
- High-Quality and Low-Price Products
- Provide Professional Design by Our Experienced R&D Engineers
- Rich Exporting Experience
- ODM, OEM Acceptable
- Technical Support by E-mail
- Calling service
Please feel free to contact us!
